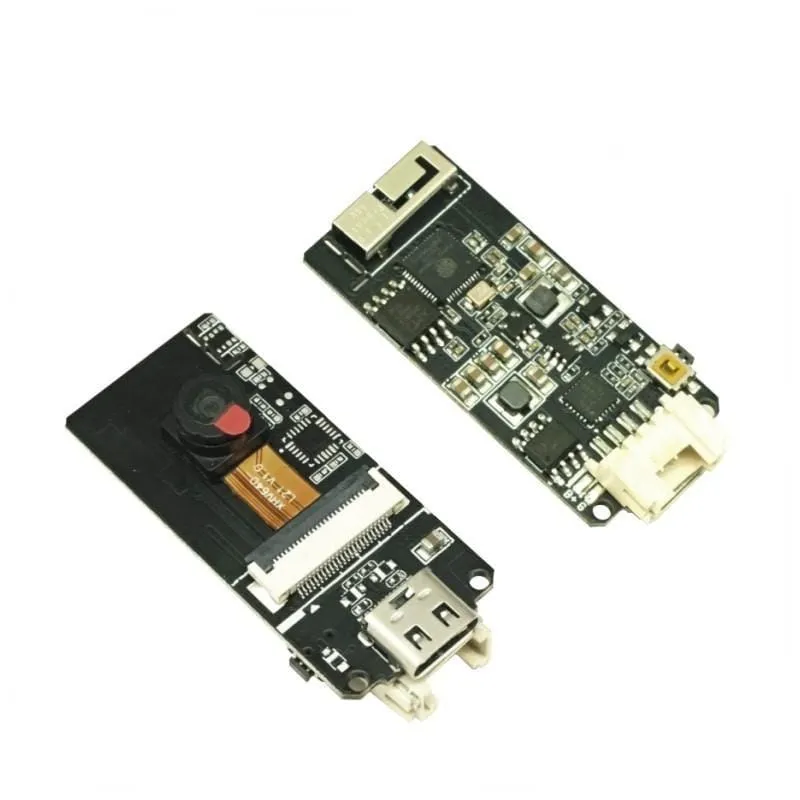

ESP32CAM is a compact development board for image recognition, with an ESP32 processor, a 2 megapixel OV2640 camera and onboard wifi.

It comes preloaded with wifi camera software, connect to the wifi network starting with 'm5stack-' and navigate to 192.168.4.1 to get started!

For more information and for help getting started, click here

Product Features

• ESP32 specifications
  • Dual-core Tensilica LX6 microprocessor
  • Up to 240MHz clock frequency
  • 520KB internal RAM
  • 4MB Flash memory
  • Integrated 802.11 BGN WiFi transceiver
  • Integrated dual-mode Bluetooth (classic and BLE)
  • Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
• CP2104 USB TTL
• OV2640 sensor
  • Output Formats(8-bit):
    • YUV(422/420)/YCbCr422
    • RGB565/555
    • 8-bit compressed data
    • 8-/10-bit Raw RGB data
  • Maximum Image Transfer Rate
    • UXGA/SXGA: 15fps
    • SVGA: 30fps
    • CIF: 60fps
  • Scan Mode: Progressive
• Camera specifications
  • Field of View : 65 degree
  • Maxmium Pixel: 2M

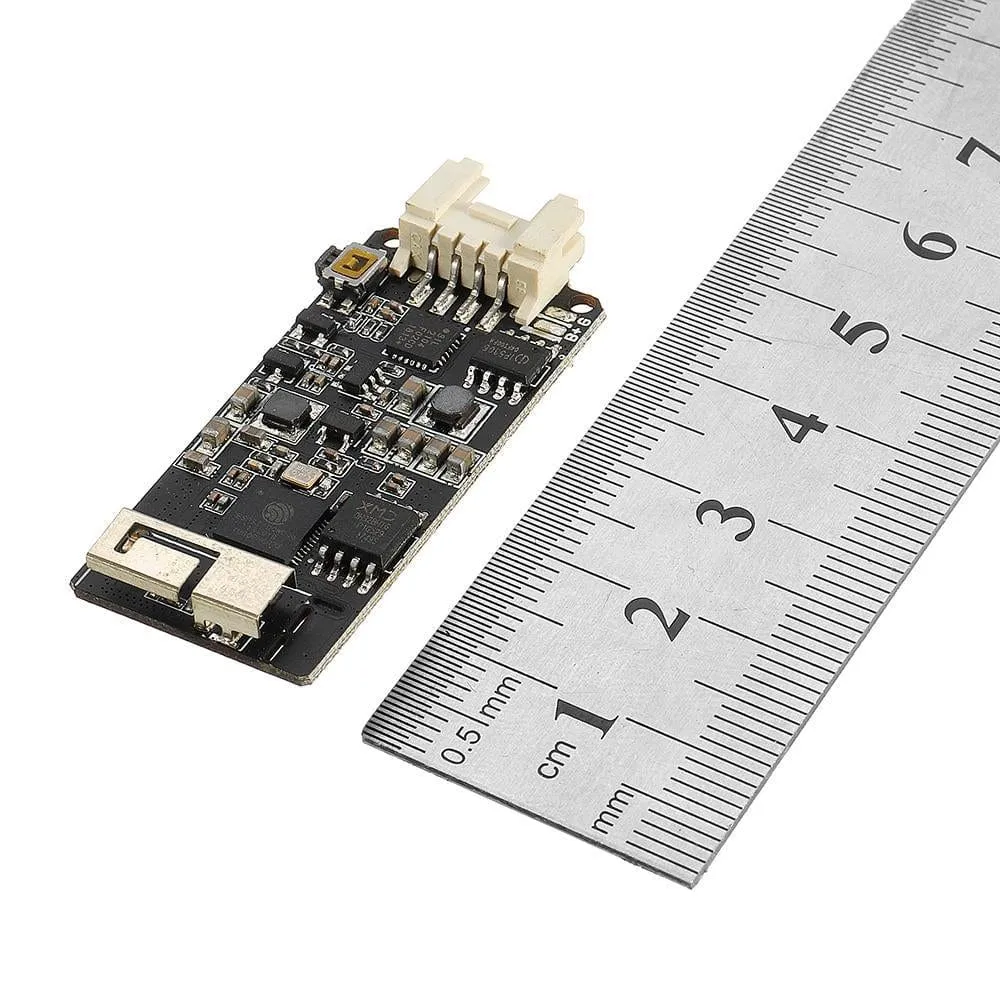

• Size: 20.5 × 46.5 × 11.5mm

Includes

• 1x ESP32CAM Unit
